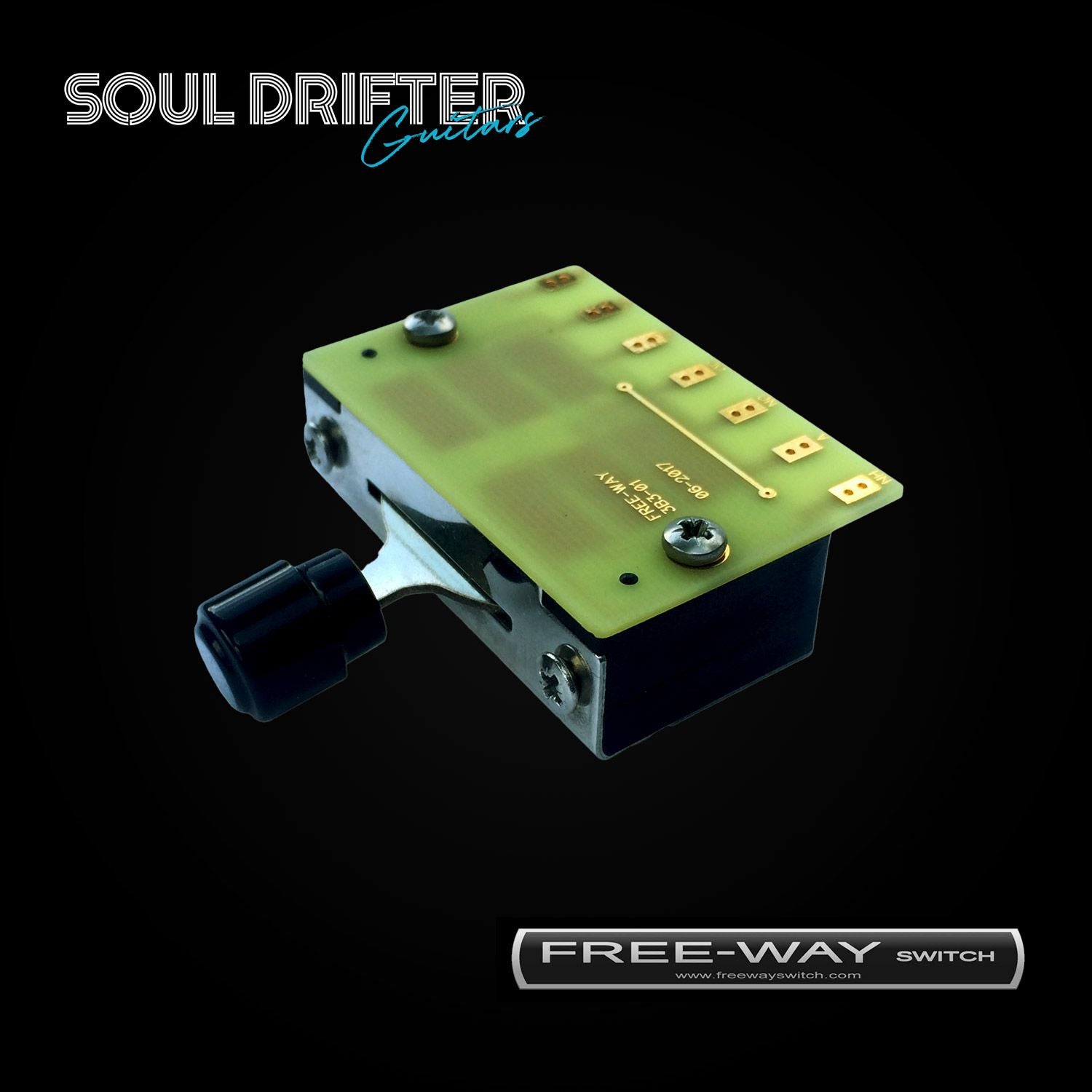

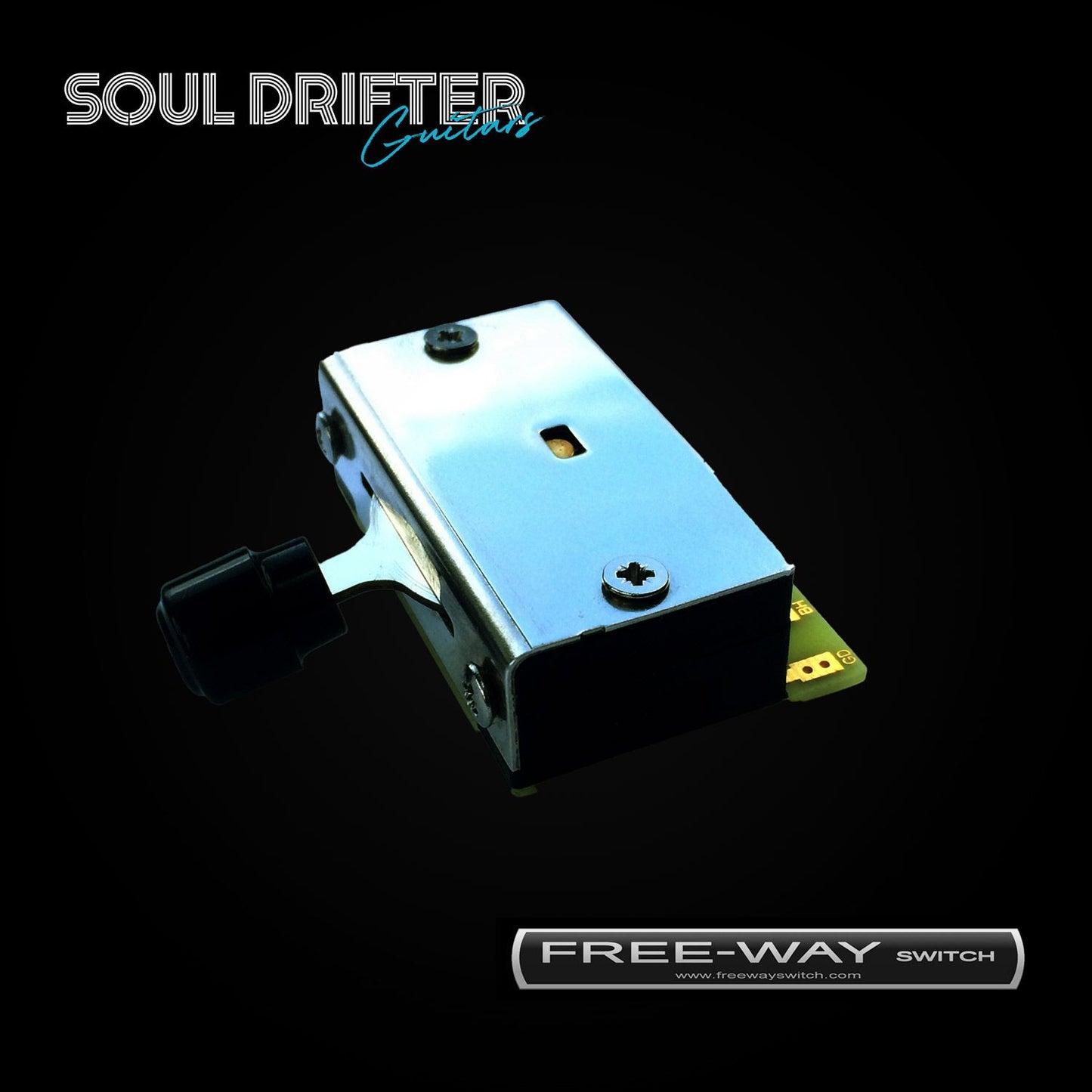

Free-Way Blade 6 Position Switch 3B3-01

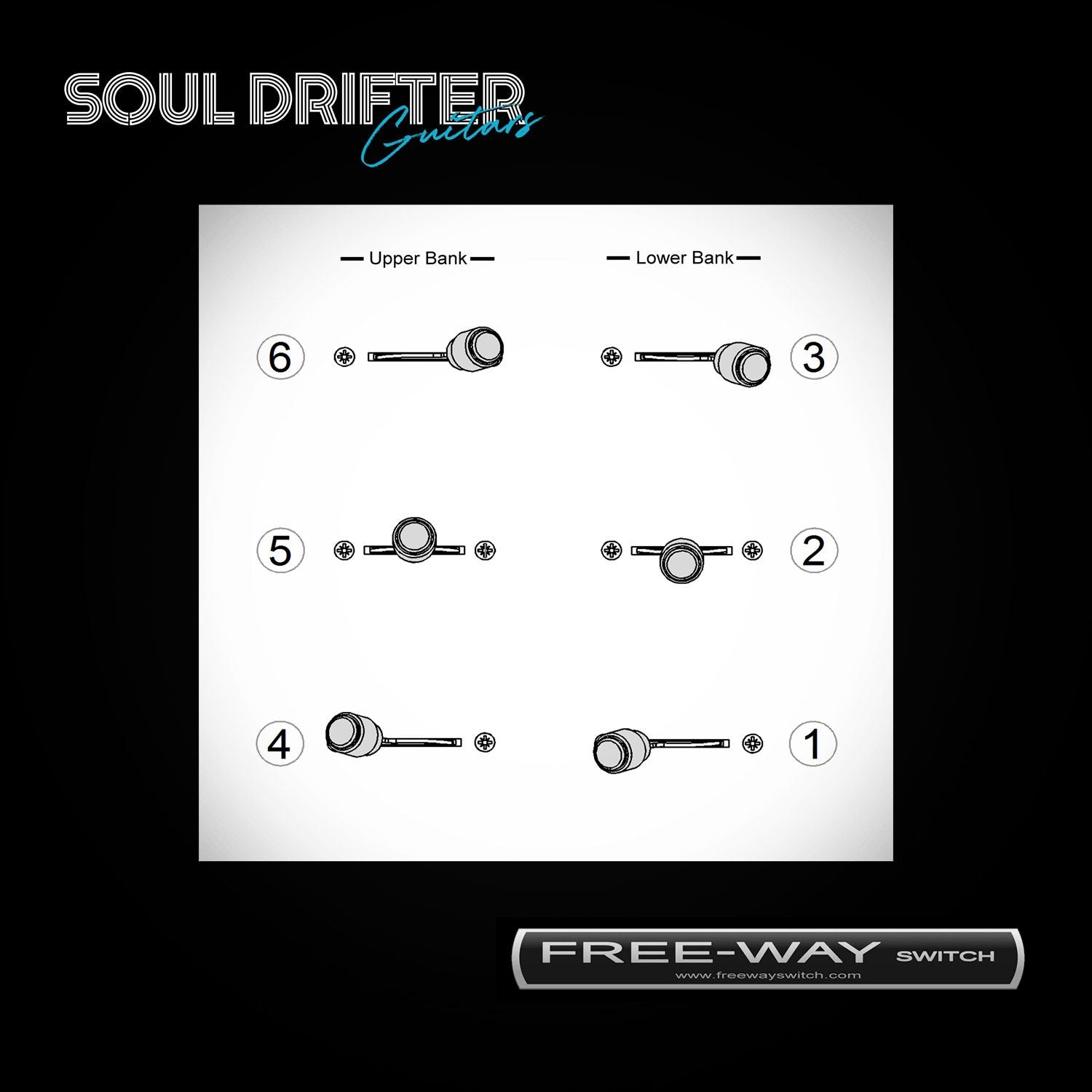

The 3B3-01 model delivers 6-position Free-Way switching in a Blade format which is directly interchangeable with conventional 3-way selectors. The lower bank of 3 positions delivers the familiar neck/both/bridge pickup combinations just as normal - but the upper bank configures the two pickups: in series; in series reverse phase; in parallel reverse phase, thereby providing every possible tonal combination from a two pickup guitar. Alternatively the 3B3-01 can be used with dual humbuckers which can be configured as above or coil-split in the upper bank.  Visually undetectable when fitted, the 3B3-01 delivers incredible tonal flexibility in a completely intuitive, familiar package.

Click here for wiring diagrams.
