Tesi IDO XL 16MM Metal Momentary Push Button Guitar Kill Switch - Gold

THIS LISTING IS FOR THE 16MM IDO/XL MOMENTARY KILL SWITCH

Specs: Type: Momentary Push Button Switch

• Operation Type: Normally Open (yes, this is correct for instrument kill switch operation. Included instructions show you how to wire it properly!)
• Housing Material:
•       Stainless Steel = Stainless Steel
•       Black = Plated Brass
•       Gold = Plated Brass
•       Blue = Anodized Zinc
•       Purple =  Anodized Zinc
•       Red =  Anodized Zinc
• Mounting hole Size: 16mm
• Mounting Panel Thickness: 1mm-6mm
• Operation Pressure: about 3n-5n
• Operation Stroke: 2.0 mm
• Contact Resistance: 50 mOhm
• Mechanical Life: 500,000 cycles
• Switch Rating: 2A/36VDC

What does all this mean?  You're getting a tough switch that will last a long time in your instrument and look good doing it!   The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it.

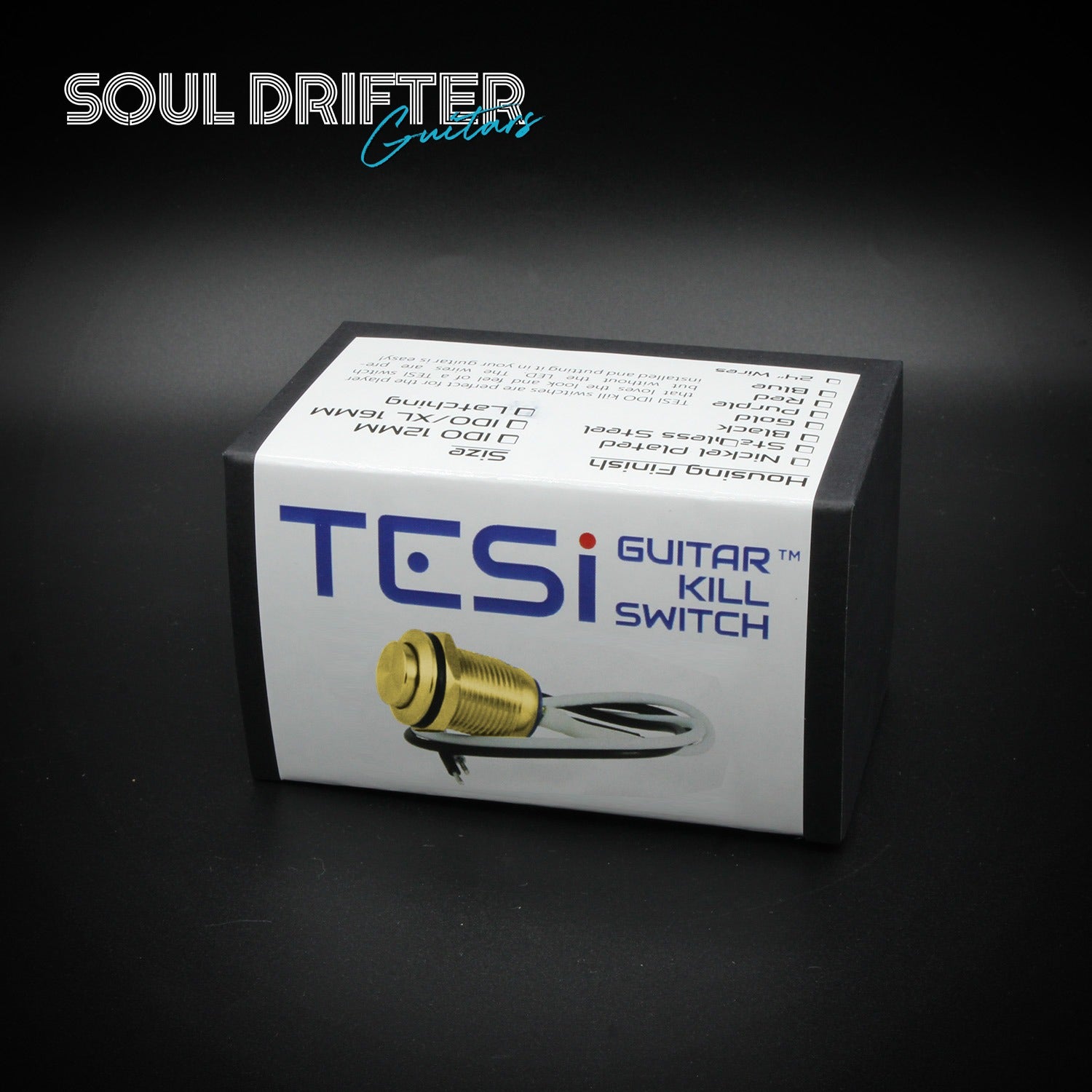

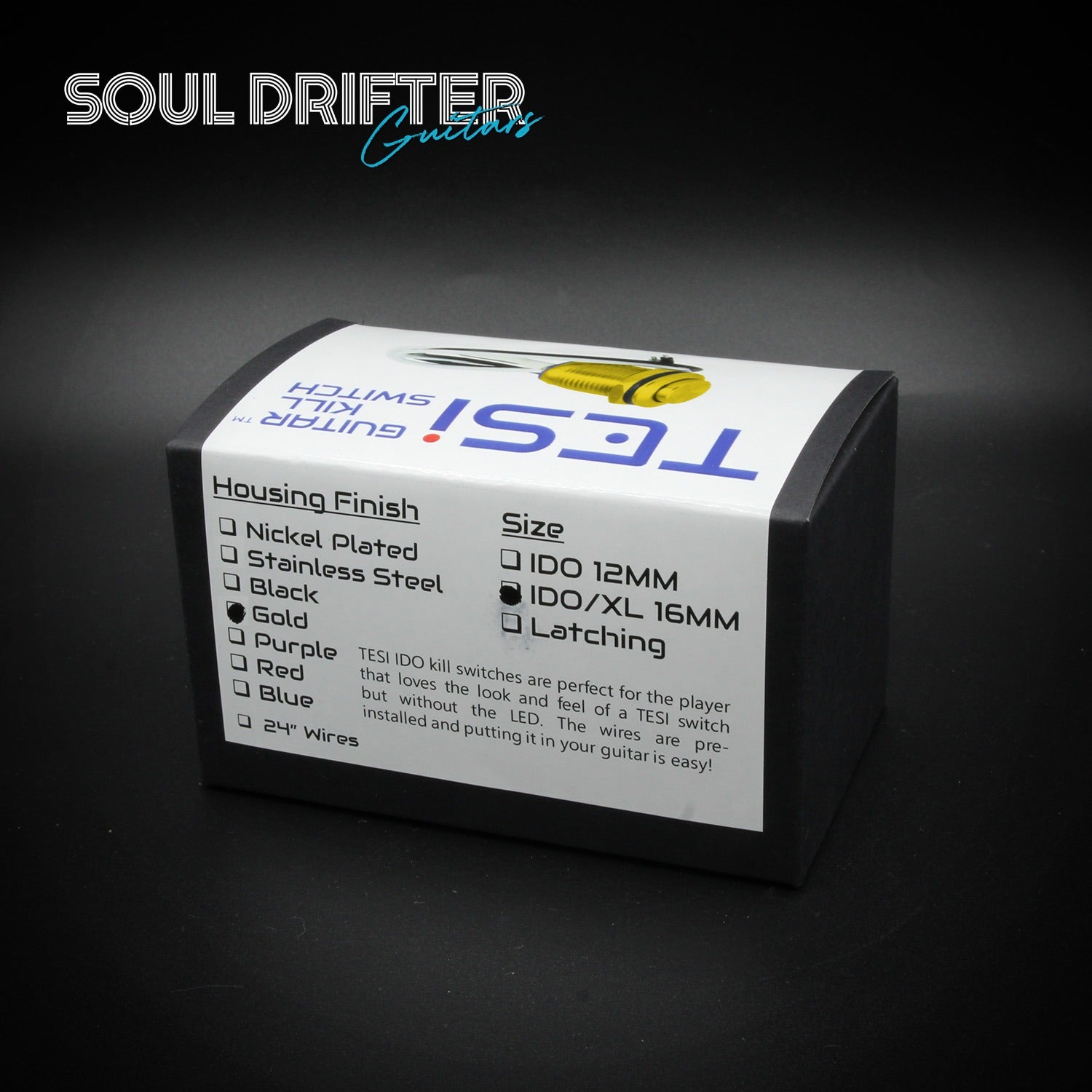

This package comes with everything:

• (1) Tesi IDO/XL 16mm Momentary Guitar Kill Switch
• (1) Tesi Quick-Connect wiring Bundle that includes:
•       (1) 8" Black ground wire
•       (1) 8" White hot wire
• (1) Set of easy-to-follow wiring instructions

This switch can be used with active or passive pickups with no additional parts required.  Just solder the wires (already attached to the switch) and get ready for action! Each Tesi Guitar Kill Switch is guaranteed against defect for one year from the date of sale.  Contact us for more details.

The Tesi Switch Difference:

We test every switch before packaging it.  As a result, the failure rate is less than 1%.  We package the 12MM and larger switches in a custom cut foam block and place in a small box for protection.
